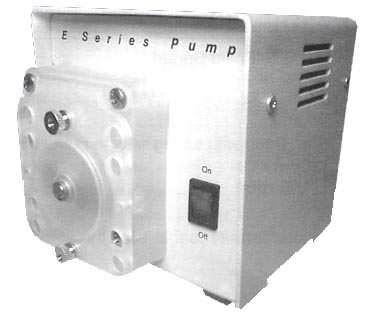

Flow Through System Pump

The Flow Through System Pump is fixed-speed, self priming peristaltic pump. The peristaltic pump roller pressure squeezes fluid through the tubing. The flow is proportional to the speed of the rollers (rpm) and the inside diameter of the tubing).

The pump can be used to pump fluid or gas without contaminating the pump; the pumped material contacts the tube only.

Specifications

TUBING SIZE SELECTION

Catalog No.

RPM** 60Hz

Flow Rate (mL/min)***
Tube Size (ID x 3/32 in. Wall)

1/16*

1/8

3/16

1/4

72-410-049
72-415-049

49

11

44

100

150

* Requires shim
** At 50 Hz, flow rate will be 16% lower
*** Flow rate accuracy: +-8%

CHEMICAL COMPATIBILITY

Selection of tubing material depends on the chemical being pumped.
Ask for our Tubing Guide to select the appropriate type of tubing links for the liquid in use
