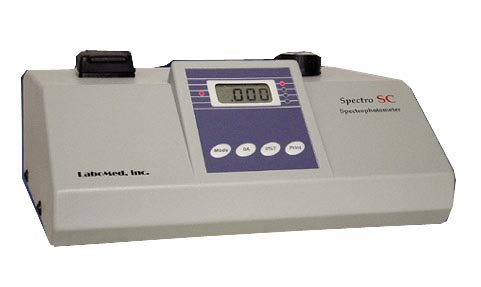

Spectro SC
Spectrophotometer
Spectro SC is an economical, single cell visible spectrophotometer. Its easy to use, compact and light weight.
With a continuous wavelength range from 335 to 1000 nm and the ability to hold square cells, 10 mm x 10 mm and round test tubes; makes Spectro SC a first choice for small laboratories and educational institutions.
It is best suited for various fields such as Chemistry Analyzing, Biochemistry,Agricultural Petrochemistry,Enviromental Protection, Science teaching labs and general industry.
Features
Microprocessor controlled.
Digital LCD Display.
Auto transmission, absorption, concentration and factor.
Silicon Diode detector
It can use square or round cells.
Interface RS232 to link to a computer.
Wide continuous wavelength range.
Built in stray light filter.
1200 /mm. grating mirror
Accessories
4 Optical Glass Cells 10mm.
2 Quartz Cells 10mm.
1 Dust cover
1 Instruction manual
1 Power cable
1 PC cable
Specifications
| Display: |
LCD |
| Wavelength range: |
335-1000 nm. |
| Light source: |
Tungsten Halogen lamp. |
| Detector: |
Silicon photodiode. |
| Wavelength accuracy: |
1 nm. |
| Wavelength reliability: |
1 nm. |
| Spectral bandwidth: |
5 nm. |
| Absorption range: |
0-2 A. |
| Concentration range: |
0-2000. |
| Transmittance range: |
0-150% (T) |
| Photometric accuracy: |
1% T. |
| Monochromator: |
1200 lines/grating mirror. |
| Spectral dimensions: |
13"(W)x12"(D)x4"(H) inches. |
| Net weight for : |
7 kg. |
|
|
|
