Flow Through System
Pump
Click here to see brochure

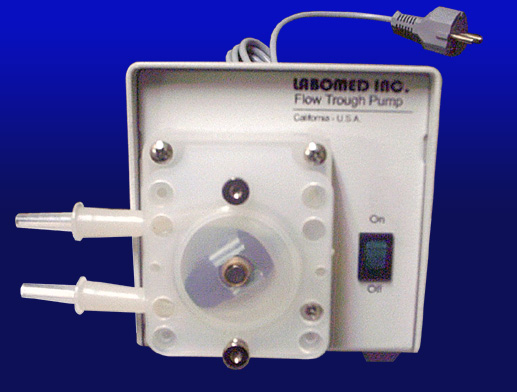

The Flow
Through System Pump is fixed-speed, self-priming peristaltic
pump. The peristaltic pump roller pressure squeezes fluid through the
tubing. The flow is proportional to the speed of the rollers (rpm) and
the inside diameter of the tubing).
The pump
can be used to pump fluid or gas without contaminating the pump; the pumped
material contacts the tube only.
TUBING SIZE
SELECTION
Catalog
No.
|
RPM**
60Hz
|
Flow Rate
(mL/min)***
Tube Size (ID x 3/32 in. Wall) |
1/16* |
1/8 |
3/16 |
1/4 |
Labomed |
900-1600 |
49 |
11 |
44 |
100 |
150 |
* Requires shim
** At 50 Hz, flow rate will be 16% lower
*** Flow rate accuracy: +-8%
CHEMICAL
COMPATIBILITY
Selection
of tubing material depends on the chemical being pumped.
Ask for our Tubing Guide to select the appropiate type of tubing links
for the liquid in use.
|
