UV-VIS SPECTROPHOTOMETER UV-2602

LOOKING FOR THE BEST PRICES IN CUVETTES? CLICK HERE!

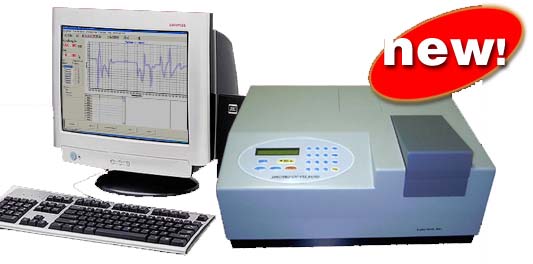

Spectro UV-Vis Auto Scanning Spectrophotometer Model UV-2602

Spectro UV-Vis Auto UV-2602 is the new version of Spectro UV-2600, with many
improvements, such as: 2nm bandwidth, noiseless, better software and better
resolution, at the same price! Spectro UV-Vis Auto is Spectrophotometer.com latest in single beam UV-Vis Spectroscopy, with its seamless integration with any PC; makes managing data easy.
The new 2 way communication system allows the user, to give instructions right from your computer and gives you the ability to print and record results in an easy to use interface.
A 2nm bandwidth gives you the accuracy needed in today's laboratories and its auto adjustment feature makes it easy to work with, providing more answers to scientific problems in less time.
Spectro UV-Vis Auto can be used in medical labs, biochemistry, Petrochemistry,
DNA/RNA tests, agriculture, educational, research and analytical labs. In addition, kinetic
testing is possible by an optional sipper (electro thermal) system.
The software, which is included, gives you the ability to control the spectrophotometer's operations
by PC. In addition to saving data, the Spectro's software can save parameters,
set wavelengths and give you automatic processing of concentration.
Spectro software is compatible with Windows™ 98, 2000 and XP.

Features

Automatic 8 Cell holder by microprocessor.

Auto A/T/C.

Auto Zero.

Auto Wavelength.

Auto Scanning by PC.

Auto Switching Deuterium and Tungsten lamps.

2 way computer communication.

RS 232 computer interface.

2 nm bandwidth.

Wide continuous wavelength.

Easy to change lamp.

USA/FDA licensed.

Accessories

8 square optical cells 10mm.

2 square quartz cells 10 mm with lid.

Dust cover.

Computer link cable.

Spectro Software Win98/2000/XP Compatible
Instruction manual.

Software Instructions
Power cable.

Optional: Peltier kinetic system

Optional: Sipper Flow Through system

Specifications

Wavelength range: 200 to 1100 nm.
Wavelength accuracy: ±0.5 nm.
Wavelength Repeatability: <_0.3nm
Spectral Bandwidth: 2 nm
Straylight: <_0.3% T. (220nm, 340nm, NaI)
Transmittance Range: 0.0~200.0%T.
Absorbance Range: -0.301~4.000A.
Concentration Range: 0~9.999C.
Transmittance accuracy: 0.5% T.
Transmittance repeatability: <_0.2% T
Baseline Flatness: ±0.005A
Noise: 100%noise<_0.3%T 0% noise<_0.2%T
Stability:

Light current: <_0.5%T/3min Dark Current: <_0.2%T/3min

Light Source: 2000hr. Tungsten, Halogen and Deuterium Lamp.
Detector: Optical Cells Photodiode
Power: AC220V/110V.±10%, 50/60Hz±1Hz
Software: Spectrophotometer.com Inc. Software (Included). for Windows 98, 2000 and XP.
Computer Interface: RS 232
Cell holder: Automatic 8 cell holder.
Display: LCD.
Keypad: Soft key.
Printer: External (Optional).
